Pressure and Air Volume Sensors

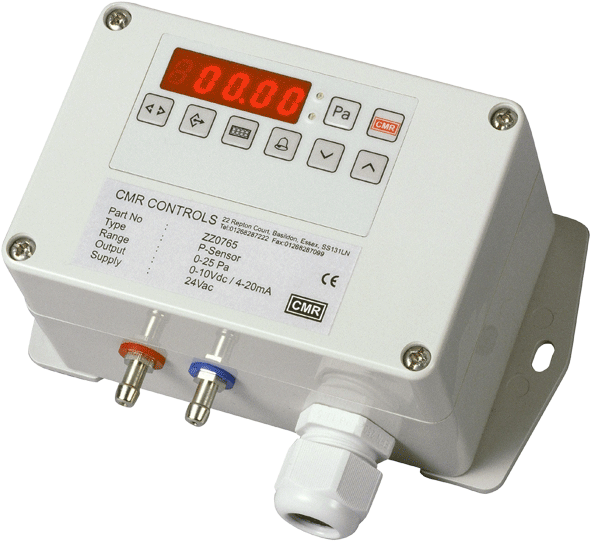

P-Sensors
The P-Sensors are high precision differential low air pressure and volume transmitters for use in commercial ventilation systems, Laboratory and Clean Room installations. The Transmitters have a linear output to pressure or air volume. They work with all CMR duct mounted veloprobes, flowprobes, flowgrids and Venturis. A green and red alarm led for high or low alarm is standard. Signal outputs of 0..10Vand 4..20mA as well as modbus is fitted for connection to PLC's or Building Management Systems. Calibration certificates traceable to International Standards are supplied..
P-Sensor Broschure (PDF)...

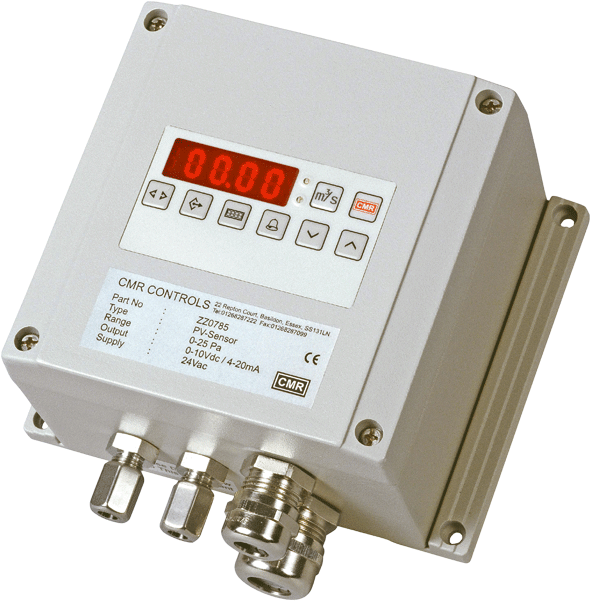

V-Sensors
The V-Sensors are high precision differential low air pressure and volume Transmitters for use in commercial ventilation systems, Laboratory and Clean Room installations. The transmitters have a linear output to pressure or air volume and have also a PID control function. They work with all CMR duct mounted veloprobes, flowprobes, flowgrids and Venturis. An alarm change over relay contact and a buzzer for high or low alarm is standard. A CMR remote display can be connected via an independent modbus. Standard output signals such as 0..10V, 4..20mA and a modbus rtu is fitted for connection to PLC's or Building Management systems.Calibration certificates traceable to International Standards are supplied. Heavy duty aluminium enclosures and compression fittings for Industrial Applications are available.

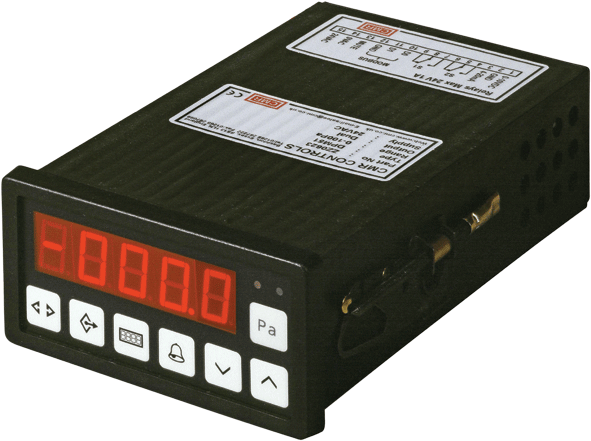

The DPM-110 panel mount high accuracy air pressure and air volume transmitters are used in commercial or industrial ventilation systems. They have been designed for use in pressure and flow monitoring as well as control applications and the PVC tubing can run up to 200m. The transmitters have linear pressure or volume output signals and have also a PID control function. They work with all CMR duct mounted veloprobes, flowprobes, flowgrids and Venturis. A CMR remote display can be connected via an independent modbus. Standard output signals of 0..10V, 4..20mA and a modbus rtu is fitted for connection to PLC's or Building Management systems. Two alarm change over relay contacts for high or low alarm are standard. The instrument is ideal for central monitoring applications where regular calibration is carried out. Calibration certificates traceable to International Standards are supplied.
| Many of the products are manufactured in our own manufacturing facilities and are available on a fast delivery time.
|
